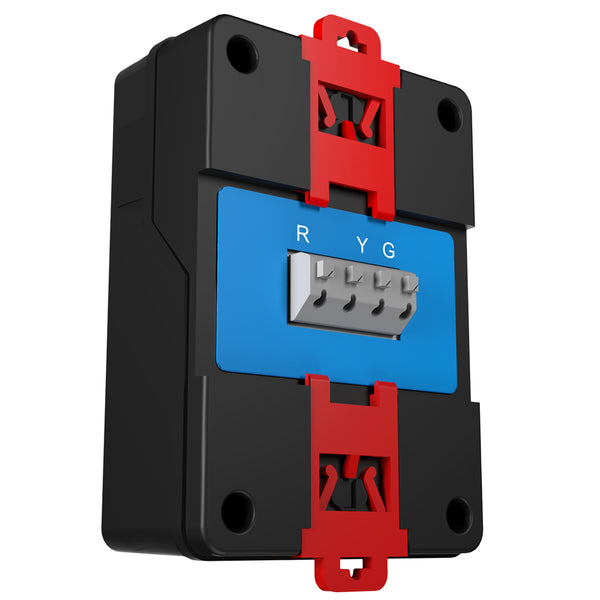

TrolMaster Hydro-X Thermostat Station [Cool Only HVAC] (TS-1)

The TS-1 thermostat stations is designed to replace a thermostat connected to a conventional cool only HVAC unit. The TS-1 is wired to the HVAC system using the same low-voltage thermostat cable, and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS  modules so multiple HVAC systems can be controlled by a single Hydro-X system.

_{*Note: TS-1 is specifically designed to replace the traditional thermostat to control Cool Only Commercial AC units.}

_{*Firmware Update Note: To update firmware on the TrolMaster's controllers and modules, you must use a Micro SD card that is 32GB or less capacity.}

1 x Thermostat Station (TS-1)

1 x 16ft RJ12 Cable

1 x 4ft RJ12 Cable

1 x RJ12 T-Splitter

Output Voltage:                                24V

Maximum Current:                            1A

Working Environment:                      Temperature 32-122°F, Humidity=90%

Package Dimensions:                       160mm(L) x 86mm(W) x 86mm(H)

G.W. per pack:                                 0.40kgs
